Scope of application:
Round, flat, square plastic and glass containers, UV ink printing. Round products with multi colors
Printing needs positioning points.
Function description:
Automatic feeding belt (centrifuge feeding optional)
Automatic flame treatment
Swing bottle conveying system
Flat bottle with automatic turnover system
Fast and convenient workpiece conversion
Using American UV system
PLC control, face touch screen
Automatic cutting
技术参数:
|
model
|

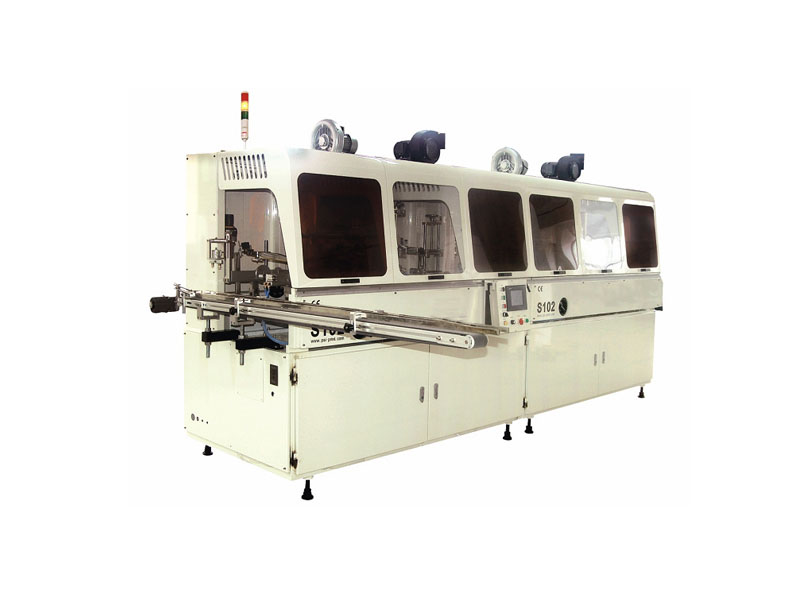

S102 automatic silk printing machine
|
|
Machine dimensions
|
|
|
organism
|
1900x1200x1600mm
|
|
Feeding system
|
3050x1300x1500mm
|
|
Blanking belt
|
2290x660x750mm
|
|
Power Supply
|
380VAC 3Phases 50/60Hz 9KW
|
|
pressure
|
5-7 bars
|
|
|
Round bottle
|
|
Printing diameter
|
25--120mm
|
|
Printing length
|
50-280mm
|
|
Printing length
|
4000pcs/hr
|
|
|
Flasks
|
|
Printing radian
|
R20-R250mm
|
|
Printing width
|
40-120mm
|
|
Printing length
|
50-280mm
|
|
Fastest speed
|
5000pcs/hr
|
|
|
Square bottle
|
|
Maximum print length
|
100-200mm
|
|
Maximum printing width
|
40-100mm
|
|
Fastest speed
|
4000pcs/hr
|
